Ball valve manufacturer

China 5 Way Ball Valve Manufacturer

  • Port size:1/2"~12" (DN15~DN300)
  • Pressure:PN10-PN64 CL150-CL600
  • Structure:5 way
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Connection:Flange,Thread,SW,BW is optional
  • Feature:China 5 way ball valve manufacturer
China 5 Way Ball Valve manufacturer, factory and supplier. 5 way ball valve adopts imported advanced technology, reasonable structure and beautiful shape. The seat adopts elastic sealing structure, reliable sealing, easy opening and closing. 5 Way Ball Valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve chamber is abnormally pressurized. With standard ISO high platform and locking device. 5 Way Ball Valve can set 90° switch positioning structure, according to the need to lock to prevent misoperation, driving mode: manual, electric actuator, pneumatic actuator.

5 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

5 way ball valve Specification:

Product Name 5 way ball valve
1. Material WCB,WCC,CF8,CF8M,CF3,CF8M,etc.
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port
4. Working Pressure PN10-PN64, 150LB~600LB
5. Connection Ends Flange, theaded or welded end
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

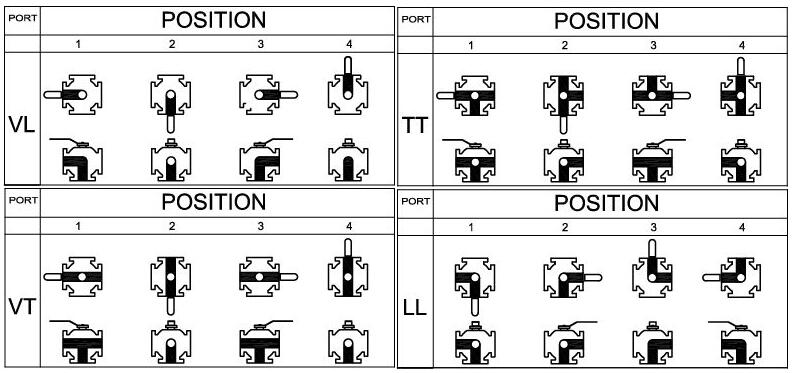

5 way ball valve flow direction
5 way ball valve flow direction
5 way ball valve flow direction
