Ball valve manufacturer

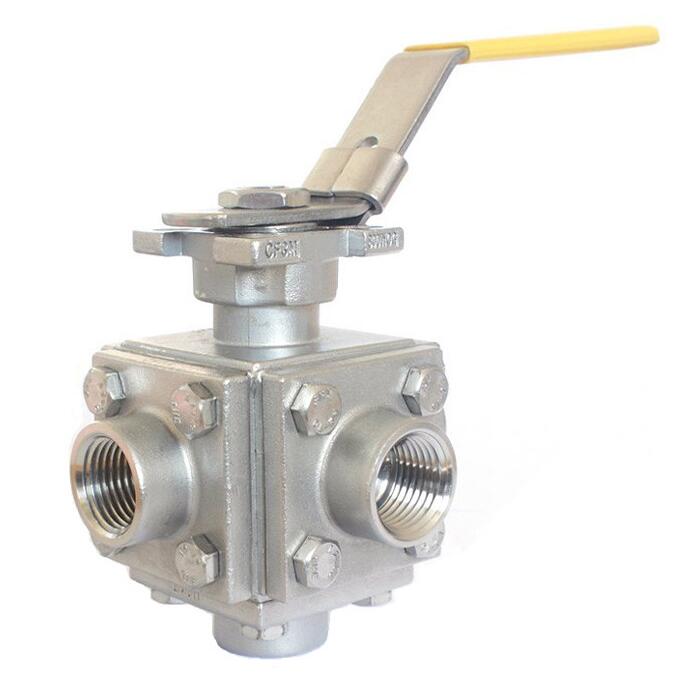

Threaded End 5 Way Ball Valve

Port size：1/2"~2" (DN15~DN50)
Pressure：PN10-PN64 CL150-CL600
Structure：5 way
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Threaded end or others
Feature：ISO 5211 mounting pad is optional

Product Description

China 5 Way Ball Valve factory and supplier, five way ball valve manufacturer. Threaded End 5 Way Ball Valve can set 90° switch positioning structure, driving mode: manual, electric actuator, pneumatic actuator. The seat adopts elastic sealing structure, reliable sealing, easy opening and closing. Threaded End 5 Way Ball Valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve chamber is abnormally pressurized. With standard ISO high platform and locking device.

Threaded end 5 way ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Threaded end 5 way ball valve Specification:

Product Name	5 way ball valve
1. Material	WCB,WCC,CF8,CF8M,CF3,CF8M,etc.
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	PN10-PN64, 150LB~600LB
5. Connection Ends	Flange, theaded or welded end
6. Working Temp.	-29～180℃,-40～450℃ or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598,JB/T9092

Threaded end 5 way ball valve flow direction
