Ball valve manufacturer

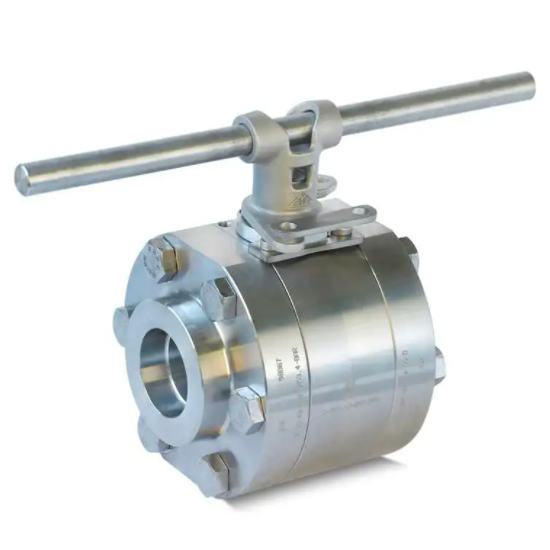

High pressure ball valve 5000 PSI

Port size：1/2"~2" (DN15~DN50)
Pressure：5000 PSI 6000 PSI
Structure：Floating ball
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：A105 LF2 F304 F316 F316L or others
Connection：Flange,Thread,SW,BW is optional
Feature：China High pressure ball valve manufacturer

Product Description

China High pressure ball valve 5000 PSI manufacturer, factory and supplier. High pressure ball valve 5000 PSI is 3pc design with threaded or BW, SW end, High pressure ball valve 5000 PSI is a kind of high pressure service valve with A105 F304 F316 or other forged steel material.High pressure ball valve 5000 PSI in the pipeline is mainly used to cut off, distribution and change the flow direction of the medium.High pressure ball valve 5000 PSI most suitable for switch and cut off valve use with manual, pneumatic,electric control,which is applicable to water, solvent, acid and gas, such as general work medium, but also is suitable for the working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, widely used in various fields.

High pressure ball valve 5000 PSI specification:
1.Full port, 1/2-2"
2. Nonimal pressure.:5000 PSI
3. Working temperature.:-29～180℃,-40～450℃
4. Forged steel:A105,F304 ,F316 or others
5. Blow-out proof stem
6. Live-loading device
7. Anti-Static Device (option)
8. Locking device
9. ASME B16.34 Wall thickness
10. NACE MR0175 (option)
11. End:Flange, thread,BW,SW

High pressure ball valve 5000 PSI standard:
Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
Pressure & Temperature standard: ASME B16.34/DIN3230
Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
