Pneumatic actuated stainless steel segmented ball valve

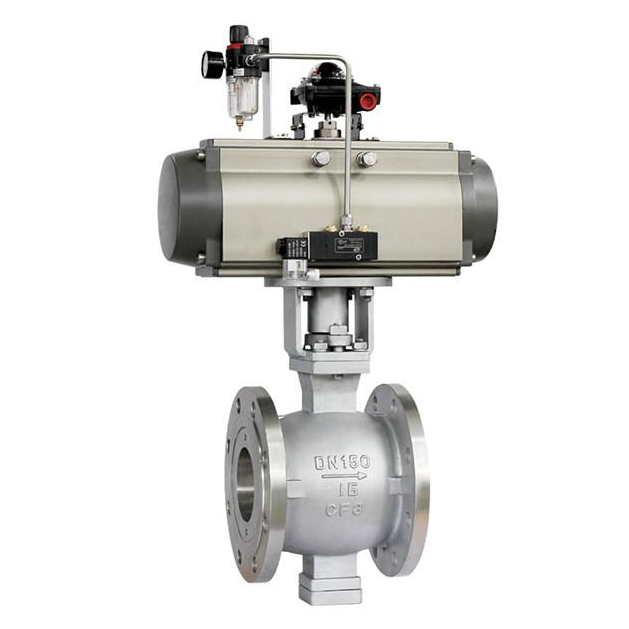

Pneumatic actuated stainless steel segmented ball valve Overview:
Pneumatic actuated stainless steel segmented ball valve is compased of pneumatic actuator (double acting or single acting) and V notch segmented ball valve (flange type or wafer type) has the V type gap in the segmented ball valve plug which will do wedge-shaped sheared action when the Pneumatic actuated stainless steel segmented ball valve is closed, which not only has self-cleaning function but also can prevent being stuck from the dirt between plug and seat. The Pneumatic actuated stainless steel segmented ball valve is not only for the general media but also special for controlling the medium of slurry, drainage, fiber and small particles.
Pneumatic actuated stainless steel segmented ball valve equipped with pneumatic or electric actuator can meet various control requirements, Pneumatic actuated stainless steel segmented ball valve is widely used in the control systems of electric power, petroleum, chemical, metallurgy and papermaking.


Pneumatic actuated stainless steel segmented ball valve pneumatuc actuator technical:

Model Spec	Pneumatic Piston	Crank Arm Piston
Power/Air Supply	Air supply: 400~600Kpa	Air supply: 400~600Kpa
Joint	Rc1/4”, Rc3/8”, Rc1/2”,	----------
Direct action	Air increase, valve close	Signal increase, valve close
Reverse action	Air increase, valve open	Signal increase, valve open
Double action	According to signal converting
Ambient Temp	-30~+70℃	-30~+70℃
Standard Coating	Yellow	------------
Accessories	Solenoid valve, Limited switch Air filter, locker, etc.	Solenoid valve, Limited switch Air filter, locker, etc.

Pneumatic actuated stainless steel segmented ball valve performance:

Rated CV	According to “Flow Characteristic”
Characteristic	Equal to EQP
Ratio	100:1
Leakage	ANSI/FCI70-2 和 IEC60534-4 Class VI-Soft; Class IV – metal seat
Hysteresis	3% (Positioner), 1% (Without positioner)
Linear	5% (Positioner), 1% (Without positioner)


Pneumatic actuated stainless steel segmented ball valve (bare shaft) structure:


Pneumatic actuated stainless steel segmented ball valve Parts details list:

No	Name	Qty	Material
1	Valve body	1	WCB	CF8	CF8M
2	Segment ball	1	CF8+HCr	CF8+HCr	CF8M+HCr
3	Cylindrical pin	2	304	304	316
4	Seat	1	304+Hard Alloy	304+Hard Alloy	316
5	Spring	1	316	316	316
6	O ring	1	Fluororubber	Fluororubber	Fluororubber
7	Self lubricant bearing	1	304+PTFE	304+PTFE	316+PTFE
8	Down stem	1	20Cr13	304	316
9	O Ring	1	Fluororubber	Fluororubber	Fluororubber
10	Back gland	1	WCB	CF8	CF8M
11	Ring gasket	1	PTFE	PTFE	PTFE
12	Adjustable gasket	1	PTFE	PTFE	PTFE
13	Flat gasket	4	Q235	304	304
14	Bolt	2	25#	304	304
15	Double screw bolt	1	25#	304	304
16	Self lubricant bearing	1	304+PTFE	304+PTFE	316+PTFE
17	Flat key	1	20Cr13	304	316
18	Down packing	1	PTFE	PTFE	PTFE
19	Middle packing	1 set	PTFE	PTFE	PTFE
20	Up packing	1	PTFE	PTFE	PTFE
21	Packing gland	1	WCB	CF8	CF8M
22	Bolt	2	35#	304	304
23	Up stem	1	20Cr13	304	316

Pneumatic actuated stainless steel segmented ball valve characteristisc:


Pneumatic actuated stainless steel segmented ball valve Rated CV:

Size mm	25	32	40	50	65	80	100	125	150
Rated Cv	27	47	70	135	210	390	560	790	1130



Size mm	200	250	300	350	400	450	500	600	700
Rated Cv	1860	2900	4320	6640	8000	10000	12200	17270	25000
