WCB WCC Worm gear segmented ball valve structure introduction:
WCB WCC Worm gear segmented ball valve has the V type gap in the valve plug which will do wedge-shaped sheared action when the WCB WCC Worm gear segmented ball valve is closed, which not only has self-cleaning function but also can prevent being stuck from the dirt between plug and seat.WCB WCC Worm gear segmented ball valve is not only for the general media but also special for controlling the medium of slurry, drainage, fiber and small particles.
WCB WCC Worm gear segmented ball valve equipped with pneumatic or electric actuator can meet various control requirements, WCB WCC Worm gear segmented ball valve is widely used in the control systems of electric power, petroleum, chemical, metallurgy and papermaking.

Structure	Segment ball
Nominal Diameter	Wafer type 1/2”~10” (DN15~DN250), Flange type: 1”~28”(DN25~DN700)
Pressure Rating	ASME Class 150 ~ CLASS 300/ PN10-PN40
Connection	Flange Type (RF、RTJ、FM）、Wafer type

WCB WCC Worm gear segmented ball valve design feature:

· Hard treated trim parts, which is grinded, polished, of high degree of finishing and wear resistance.
· The cavity is designed based on straight through and streamline type, which can prevent blocking up and improve the steady of action.
· Shearing action ball and the valve can clean itself, which is suitable for various kinds of gas and liquid and especially for the liquid of containing paper pulp, sewage and containing solid particle.

WCB WCC Worm gear segmented ball valve structure:


WCB WCC Worm gear segmented ball valve Parts details list:

No	Name	Qty	Material
1	Valve body	1	WCB	CF8	CF8M
2	Segment ball	1	CF8+HCr	CF8+HCr	CF8M+HCr
3	Cylindrical pin	2	304	304	316
4	Seat	1	304+Hard Alloy	304+Hard Alloy	316
5	Spring	1	316	316	316
6	O ring	1	Fluororubber	Fluororubber	Fluororubber
7	Self lubricant bearing	1	304+PTFE	304+PTFE	316+PTFE
8	Down stem	1	20Cr13	304	316
9	O Ring	1	Fluororubber	Fluororubber	Fluororubber
10	Back gland	1	WCB	CF8	CF8M
11	Ring gasket	1	PTFE	PTFE	PTFE
12	Adjustable gasket	1	PTFE	PTFE	PTFE
13	Flat gasket	4	Q235	304	304
14	Bolt	2	25#	304	304
15	Double screw bolt	1	25#	304	304
16	Self lubricant bearing	1	304+PTFE	304+PTFE	316+PTFE
17	Flat key	1	20Cr13	304	316
18	Down packing	1	PTFE	PTFE	PTFE
19	Middle packing	1 set	PTFE	PTFE	PTFE
20	Up packing	1	PTFE	PTFE	PTFE
21	Packing gland	1	WCB	CF8	CF8M
22	Bolt	2	35#	304	304
23	Up stem	1	20Cr13	304	316

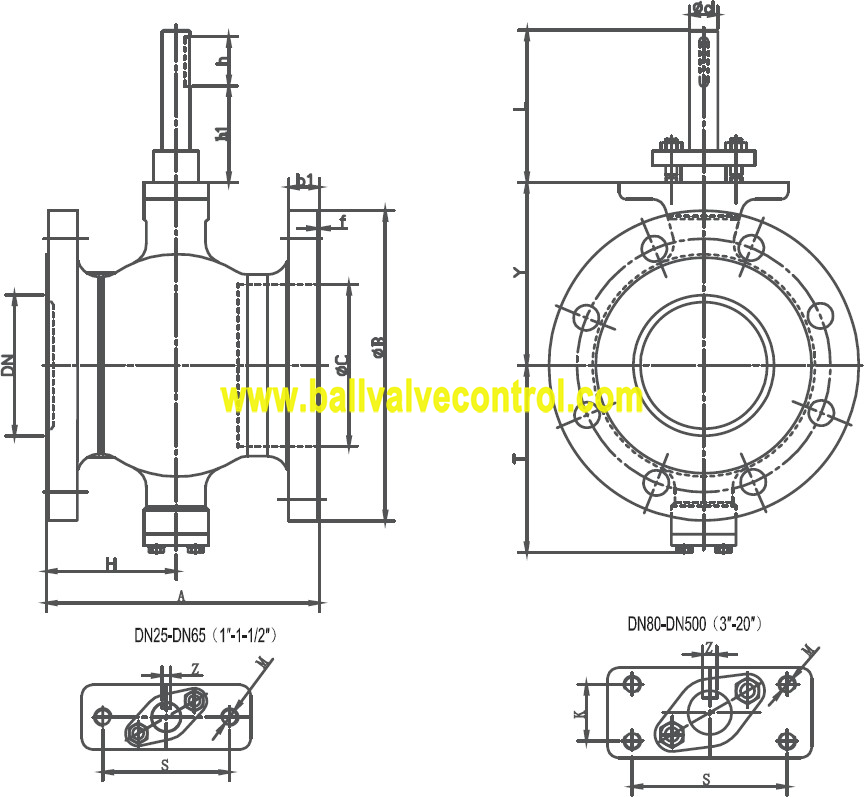

WCB WCC Worm gear segmented ball valve flange type dimension:


WCB WCC Worm gear segmented ball valve flange type dimension as below:                                                Unit: mm

DN	A	H	B	b1	f	C	T	Y	L	L	0d	h	S	K	M	Z	Tor.
25	102	51	115	16	2	38	81	73	102	75	16	35	75	/	2-M10	5	32
32	102	51	140	18	2	45	86	78	100	75	16	35	75	/	2-M10	5	40
40	114	57	150	18	2	50	90	80	102	75	16	35	75	/	2-M10	5	76
50	124	60	165	20	2	62	93	90	104	75	16	35	75	/	2-M10	5	90
65	145	70	185	20	2	73	108	105	102	75	16	35	75	28	2-M10	5	100
80	165	75	200	20	2	90	123	118	110	75	20	35	90	28	4-M10	6	140
100	194	92	220	22	2	115	138	130	108	75	20	35	90	28	4-M10	6	150
125	194	97	250	22	2	134	148	145	110	80	25	40	90	40	4-M10	8	200
150	229	110	285	24	2	164	170	170	124	94	30	50	110	40	4-M12	8	300
200	243	120	340	24	2	206	200	201	124	94	30	50	110	40	4-M12	8	500
250	297	148	405	26	2	260	240	237	140	98	40	60	135	40	4-M16	12	800
300	338	190	460	28	2	316	286	282	140	98	40	60	135	64	4-M16	12	1400
350	400	221	520	30	2	372	330	337	170	125	50	60	140	80	4-M16	14	2000
400	400	220	580	32	2	420	367	372	212	172	60	80	170	90	4-M16	18	2900
450	520	290	640	40	2	470	422	432	240	172	70	90	190	90	4-M16	20	3400
500	600	320	715	44	2	516	490	498	250	180	80	100	190	/	4-M16	22	5000

WCB WCC Worm gear segmented ball valve wafer type dimension:

WCB WCC Worm gear segmented ball valve wafer type dimension as below:                                                Unit: mm

DN	A	B	C	T	Y	L	T	φ	d	h	S	K	M	Z	Tor.
25	50	30	68	38	81	73	102	75	16	35	75	/	2-M10	5	32
32	60	35	76	45	86	78	100	75	16	35	75	/	2-M10	5	40
40	60	35	84	50	90	80	102	75	16	35	75	/	2-M10	5	76
50	75	43	100	62	93	90	104	75	16	35	75	/	2-M10	5	90
65	100	50	118	73	108	105	102	75	16	35	75	/	2-M10	5	100
80	100	57	132	90	123	118	110	75	20	35	90	28	4-M10	6	140
100	115	65	158	115	138	130	108	75	20	35	90	28	4-M10	6	150
125	129	78	184	134	148	145	110	80	25	40	90	28	4-M10	8	200
150	160	95	216	164	170	170	124	94	30	50	110	40	4-M12	8	300
200	200	120	268	206	200	201	124	94	30	50	110	40	4-M12	8	500
250	240	148	326	260	240	237	140	98	40	60	135	40	4-M16	12	800
