Ball valve manufacturer

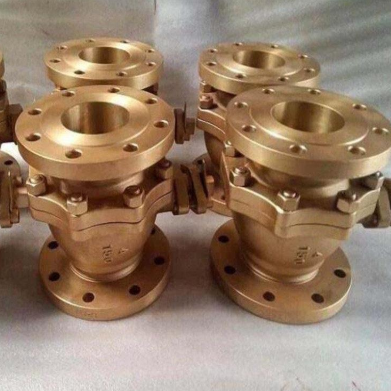

China Aluminium Bronze Ball Valve manufacturer

Port size：1/2"~24" (DN15~DN600)
Pressure：PN10-PN64 CL150-CL600
Structure：Floating ball
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：Aluminum Bronze C95800 C95500 C95400
Connection：Flange or others
Feature：Aluminium Bronze Ball Valve manufacturer

Product Description

Shanghai Huixuan valve is China Aluminium Bronze Ball Valve manufacturer and factory for Aluminum Bronze C95800 C95500 C95400 ball valve,floating Aluminium Bronze Ball Valve,trunnion Aluminium Bronze Ball Valve,pneumatic Aluminium Bronze Ball Valve and electric Aluminium Bronze Ball Valve with flange or thread end for different pressure.

Aluminum Bronze C95800 C95500 C95400 ball valve is mainly used to overcome the harsh working conditions of strong corrosive environment,such as sea water desalination platforms, various types of sea vessels, warships, submarines, offshore drilling platforms and other Marine equipment; Aluminum Bronze C95800 C95500 C95400 ball valve is also used in polycarbonate, polyethylene, low density polyethylene, aromatic, liquefied natural gas (LNG) refinery facilities.Aluminum Bronze C95800 C95500 C95400 ball valve has been widely used in fire fighting systems, ballast control systems, cooling systems, seawater injection systems and many other critical systems.

Aluminium Bronze Ball Valve specification:

Product Name	Aluminium Bronze Ball Valve
1. Material	Aluminum bronze:C95800 C95500 C95400
2. Size	1/2~12 inch ( DN15~DN300)
3. Port	Full Port
4. Working Pressure	150LB~1500LB
5. Connection Ends	Flange
6. Working Temp.	-29~180ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Sea water,Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Aluminium Bronze Ball Valve standard:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

Aluminium Bronze Ball Valve design feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Aluminium Bronze Ball Valve application:
Marine piping system: fuel oil, water supply, steam, cooling, engine, etc.
Chemical pipeline system: such as container, heat exchanger, mixer, gas liquid, drying, reaction, etc.
Petrochemical pipeline system: such as petroleum steam mining, crude oil mining, petroleum refining, transportation, separation, etc.
Refining piping system: antibiotic fermentation, concentration, vegetable oil, bitumen, raw energy, etc.
