Ball valve manufacturer

China stainless steel ball valve

Port size：DN15-DN600;1/2''-24''
Pressure：PN16 ~ 420,150LB ~ 2500LB
Structure：2PCS or 3 PCS
Medium：Water,steam,oil,gas
Temperature :-20~180ºC,-46~450ºC
Body material： CF8 CF3 CF8M CF3M or other stainless steel
Connection：Flanged,welded,threaded.
Feature：Different operation is for option.

Product Description

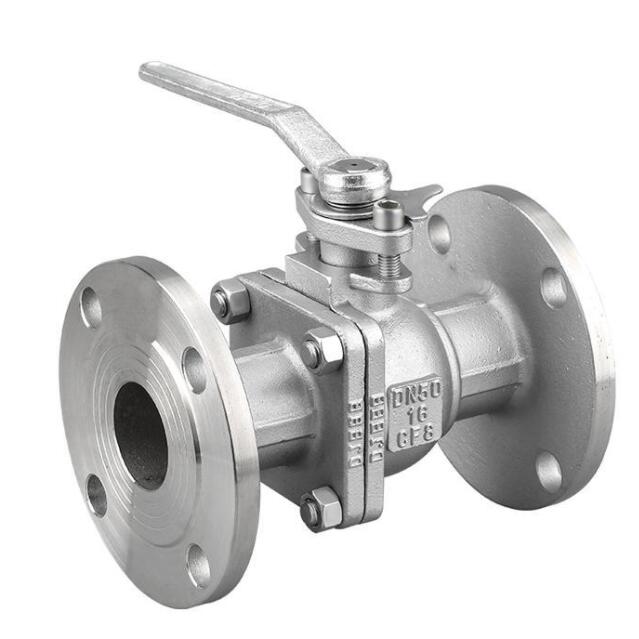

China Stainless steel ball valve manufacturer, factory and supplier,Stainless steel ball valve is 2 PC or 3 PC design, full bore bore,floating ball design with CF8 CF8M or other stainless steel material, China Stainless steel ball valve is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of China Stainless steel ball valve is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

China stainless steel ball valve Specification:

Product Name	China Stainless floating steel ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), etc.
2. Size	1/2~16 inch ( DN15~DN400)
3. Port	Full Port
4. Working Pressure	150LB~600LB
5. Connection Ends	Flange
6. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

China stainless steel ball valve Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.

China stainless steel ball valve Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
