Ball valve manufacturer

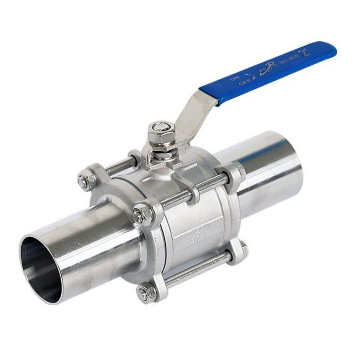

Socket weld SW stainless steel ball valve

Port size：1/2'' ~ 3''( 15mm ~ 80mm)
Pressure：1000PSI/2000PSI
Structure：3PC,Full bore
Medium：Water,oil,steam,gas
Temperature :-29～180℃,-40～450℃
Body material：CF8 CF3 CF8M CF3M or others
Connection：SW,BW,thread,Flange,clamp is optioanl
Feature：ISO 5211 direct mount is optional

Product Description

Socket weld SW stainless steel ball valve introduction:
Socket weld SW stainless steel ball valve is 3 pcs,full bore design,Socket weld SW stainless steel ball valve seat adopts elastic sealing structure, which is reliable and easy to open and close.The stainless steel ball vale stem adopts a down-mounted structure with an inverted seal, so that the stem will not be rushed out when the valve cavity is under abnormal pressure.Both Socket weld SW stainless steel ball valve can be equipped with ISO support platform and locking device.The 90° switch positioning mechanism can be set, Socket weld SW stainless steel ball valvecan be locked as needed to prevent misoperation. The Socket weld SW stainless steel ball valve driving mode is manual, electric and pneumatic.

Socket weld SW stainless steel ball valve is widely used in pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role,the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

Socket weld SW stainless steel ball valve Specification:

Product Name	Socket weld SW stainless steel ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), etc.
2. Size	1/2~3 inch ( DN15~DN80)
3. Port	Full Port
4. Working Pressure	1000PSI 2000PSI
5. Connection Ends	Female
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598

Socket weld SW stainless steel ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Our product range:
Shanghai Huixuan is ball valve factory, China Ball valve manufacturer mainly produce pneumatic ball valve,electric ball valve,floating ball valve,trunnion ball valve,segmented ball valve,high pressure ball valve,cryogenic ball valve,3 way ball valve,PTFE lined ball valve,ceramic ball valve,DBB ball valve,cast steel ball valve,stainless steel ball valve,forged steel ball valve,fully welded ball valve, top entry ball valve,italy water ball valve,direct mount ball valve,plastic ball valve and other ball valves.
