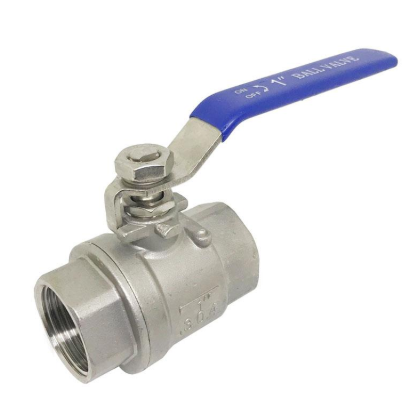

Stainless steel mini ball valve 1000 WOG introduction:
Stainless steel mini ball valve 1000 WOG is 2 PC or 3 PC design,full bore bore,floating ball,threaded end design with CF8 CF8M or other stainless steel material, Stainless steel mini ball valve 1000 WOG is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of Stainless steel mini ball valve 1000 WOG is reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.
Stainless steel mini ball valve 1000 WOG specification:
| Product Name |
Stainless steel mini ball valve 1000 WOG |
| 1. Material |
SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), etc. |
| 2. Size |
1/2~4 inch ( DN15~DN100) |
| 3. Port |
Full Port |
| 4. Working Pressure |
1000 WOG,2000 WOG |
| 5. Connection Ends |
Threaded end, welded end, flange end |
| 6. Working Temp. |
-20~300ºC, or according to customer requirements for different industry. |
| 7. Suitable Medium |
Water, Natural Gas, Oil and some corrosive liquid |
| 8. Operation |
Handle operated, Locking device is option |
| 9. Inspection & Testing |
According to API598 |
Stainless steel mini ball valve 1000 WOG Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.
Stainless steel mini ball valve 1000 WOG Product Feature:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
