Ball valve manufacturer

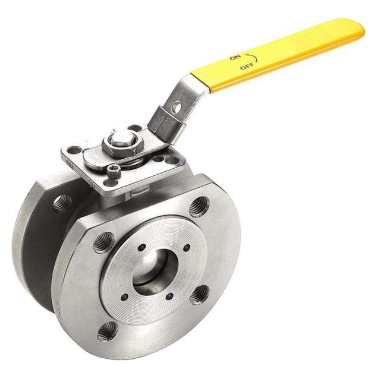

Italy wafer type ball valve

Port size：1/2"~12" (DN15~DN300)
Pressure：PN10-PN100 CL150-CL600
Structure：Short length
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Wafer type
Feature：Compact structure, short length

Product Description

China Italy wafer type ball valve manufacturer, factory and supplier. Italy wafer type ball valve has the advantages of short structure length, light weight, convenient installation and material saving. Italy wafer type ball valve seat use the elastic sealing structure, the sealing is reliable, opens and closes easily.With fire-resistant structure, in case of fire, Italy wafer type ball valve can still operate reliably and have good sealing.According to the needs of users, anti-static structure can be set.The switch with hole positioning plate is set, which can be locked according to the need to prevent misoperation.

Italy wafer type ball valve is used to truncate or on line in the medium, choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.

Italy wafer type ball valve Performance parameter
Nominal size: DN15~300mm
Nominal pressure: 1.0Mpa-100Mpa,CL150,CL300,CL600
Connection: ultra-thin flange type, sandwiched type
Structural form: straight through
Spool type: O - type spool
Flow characteristics: fast opening characteristics
Spool material: stainless steel 304, stainless steel 316, stainless steel 316L, etc
Sealing materials: PTFE, PPL, metal sealing
Body design: straight cast ultra short ball valve
Body material: Carbon steel (WCB), stainless steel 304, stainless steel 316, stainless steel 316L, etc
Temperature range: PTFE: ≤150°C, PPL: ≤200°C, hard seal: ≤450°C
Applicable temperature: -17°C~450°C
Type of drive: manual,electric,pneumatic
Applicable medium: Italy wafer type ball valve is used in all kinds of pipeline, used to cut off or connect the medium in the pipeline, choose different materials, can be respectively applicable to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium
