Ball valve manufacturer

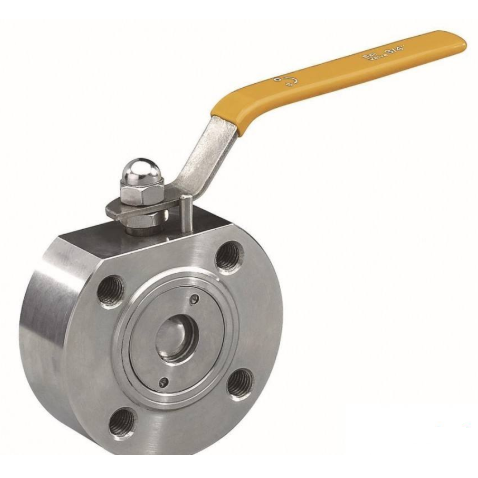

Stainless steel wafer ball valve

Port size：1/2"~12" (DN15~DN300)
Pressure：PN10-PN100 CL150-CL600
Structure：Ultra short pattern
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃,-40～450℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Connection：Wafer type
Feature：Short length for space limit solution

Product Description

China stainless steel wafer ball valve manufacturer, factory and supplier. Stainless steel wafer ball valve has the advantages of short structure length, light weight, convenient installation and material saving. Stainless steel wafer ball valve is suitable for short line pipe and special space installation and use, with compact structure,short length,small volume, valve seat and flange end face distance is close, less material retention, superior sealing performance and other characteristics.

Stainless steel wafer ball valve seat use the elastic sealing structure, the sealing is reliable, opens and closes easily.With fire-resistant structure, in case of fire, Stainless steel wafer ball valve can still operate reliably and have good sealing. According to the needs of users, anti-static structure can be set.The switch with hole positioning plate is set, which can be locked according to the need to prevent misoperation.

Stainless steel wafer ball valve choose different material, can be respectively suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, and other media.

Stainless steel wafer ball valve Performance parameter
Nominal size: DN15~300mm
Nominal pressure: 1.0Mpa-100Mpa,CL150,CL300,CL600
Connection: ultra-thin flange type, sandwiched type
Structural form: straight through
Spool type: O - type spool
Flow characteristics: fast opening characteristics
Spool material: stainless steel 304,316,316L, etc
Sealing materials: PTFE, PPL, metal sealing
Body design: straight cast ultra short ball valve
Body material: Carbon steel (WCB), stainless steel 304, 316, 316L, etc
Temperature range: PTFE: ≤150°C, PPL: ≤200°C, hard seal: ≤450°C
Applicable temperature: -17°C~450°C
Type of drive: manual,electric,pneumatic
Applicable medium: Manual Stainless steel wafer ball valve is used in all kinds of pipeline, used to cut off or connect the medium in the pipeline, choose different materials, can be respectively applicable to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.
