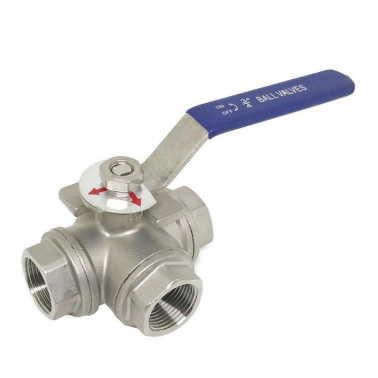

Lever Thread 3 way 304 316 SS ball valve

Lever Thread 3 way 304 316 SS ball valve introduction
Lever Thread 3 way 304 316 SS ball valve is T port or L port design, which on base of full bore design with 304 316 304L 316L or other material. Lever Thread 3 way 304 316 SS ball valve can choose T port or L port structure according to the flow direction.T port 3 way ball valve can make the three orthogonal pipelines connect with each other and cut off the third channel, playing the role of diversion and confluence.L port 3 way ball valve can only connect two mutually orthogonal pipelines, which cannot maintain the interconnection of the third pipeline at the same time, only plays the role of distribution.

Lever Thread 3 way 304 316 SS ball valve Specification:

Product Name	Lever Thread 3 way 304 316 SS ball valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),etc.
2. Size	1/2~4 inch ( DN15~DN100)
3. Port	Full Port
4. Working Pressure	1000 WOG
5. Connection Ends	Threaded end
6. Working Temp.	-29～180℃,-40～450℃ or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598,JB/T9092


Lever Thread 3 way 304 316 SS ball valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
